Home Assistant "Energy Dashboard"
Energy Dashboard isn't actually live. It lags behind by an hour.

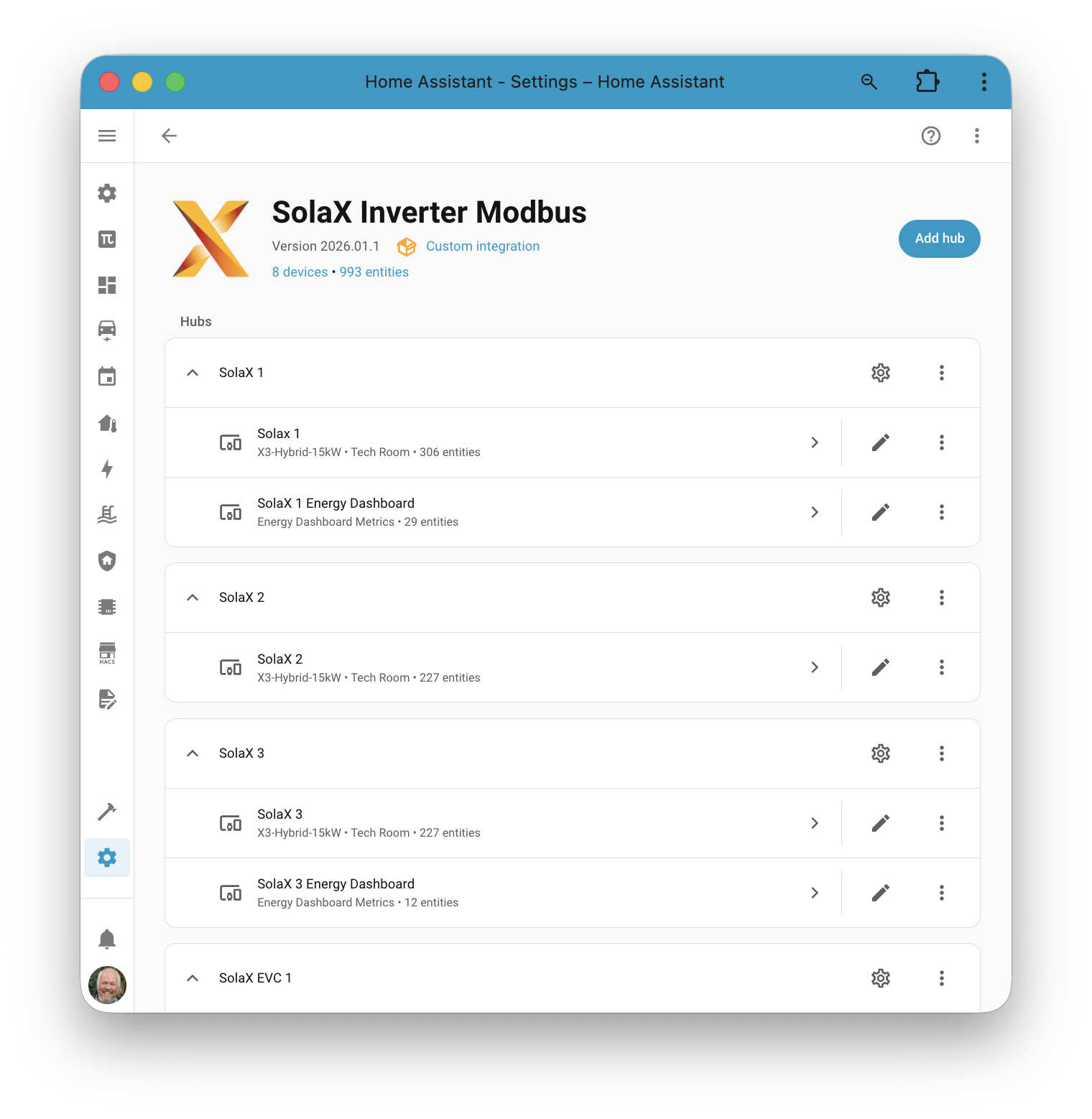

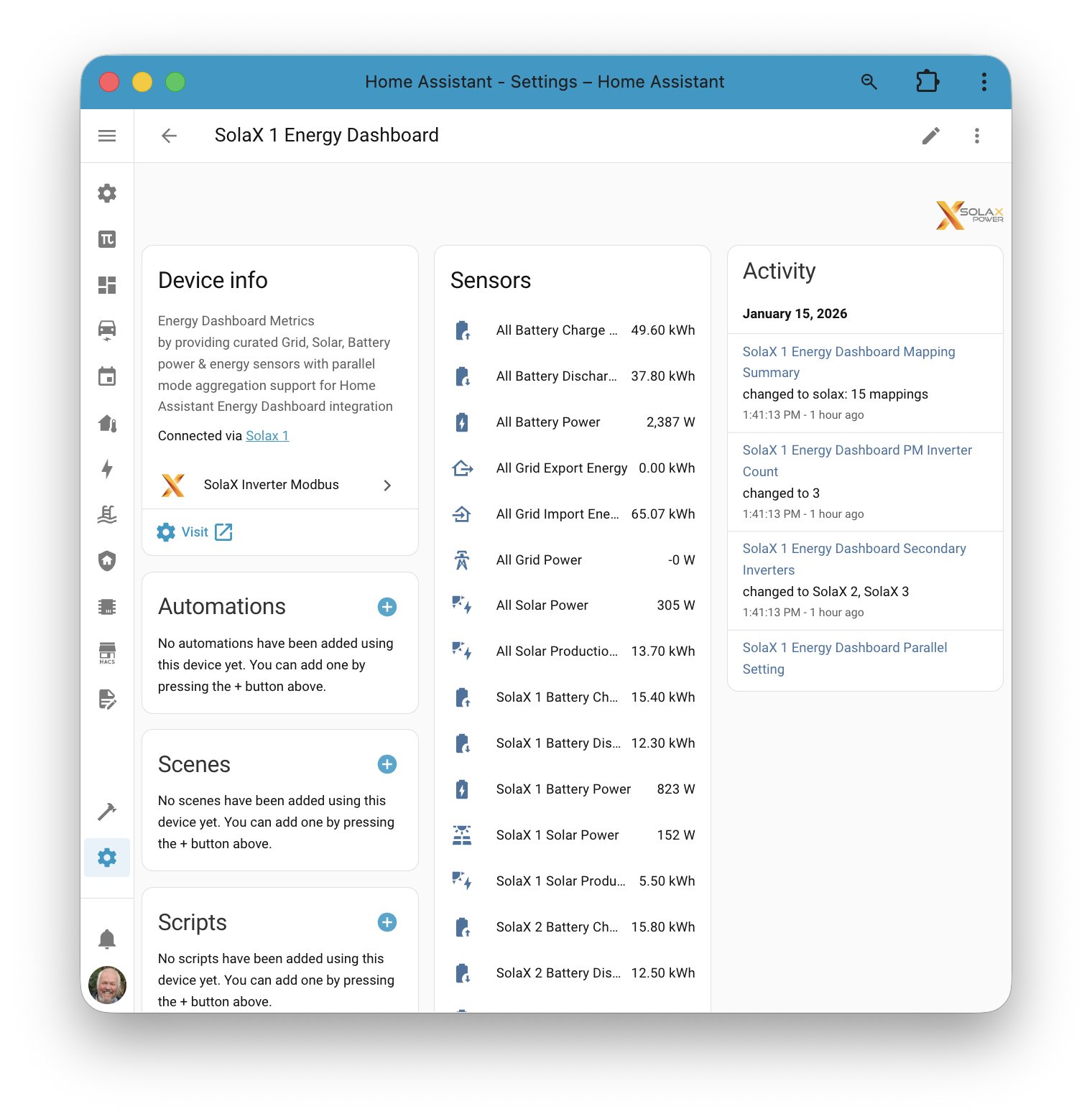

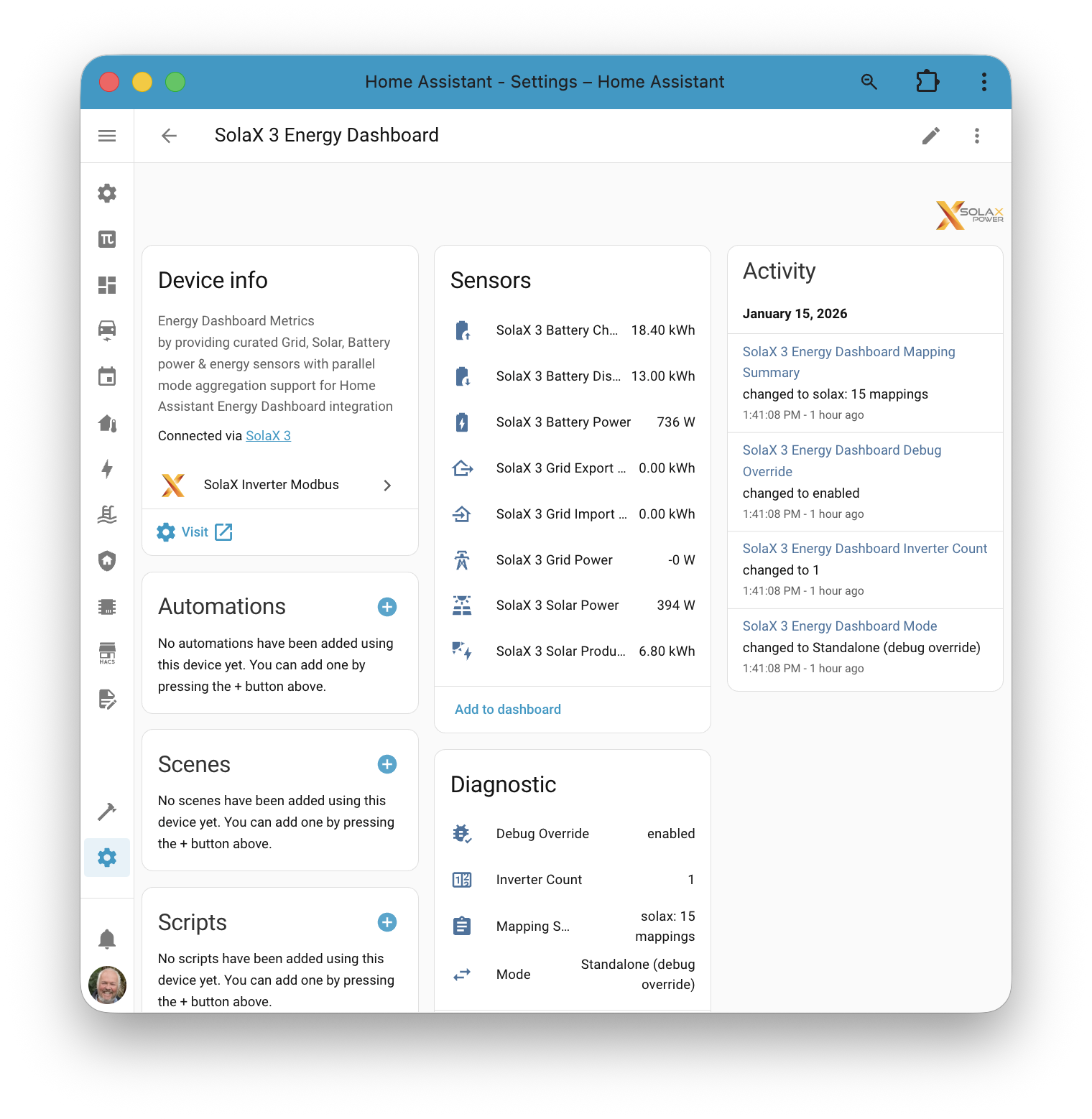

Entities
Electricity Grid
- SolaX Gen2
- Grid consumption - You need to enable "Grid Import Total"
- Return to grid - You need to enable "Grid Export Total"
- SolaX Gen 3 & Gen4
- Grid consumption - sensor.solax_today_s_import_energy
- Return to grid - sensor.solax_today_s_export_energy
Solar Panels
- SolaX Gen2 - 4
- Solar production - sensor.solax_today_s_solar_energy
Home Battery Storage
- SolaX Gen2
- Energy going to the battery (kWh) - You need to enable "Battery Input Energy Total"
- Energy coming out of the battery (kWh) - You need to enable "Battery Output Energy Total"
- SolaX Gen3 & Gen4
- Energy going to the battery (kWh) - sensor.solax_battery_input_energy_today
- Energy coming out of the battery (kWh) - sensor.solax_battery_output_energy_today
Power Distribution Card
Real Time Visualization of Energy flows
type: custom:power-distribution-card
title: Power Flow
entities:
- decimals: '2'
display_abs: true
name: Grid
unit_of_display: W
icon: mdi:transmission-tower
entity: sensor.solax_measured_power
preset: grid
icon_color:
bigger: ''
equal: ''
smaller: ''
invert_value: true
threshold: ''
secondary_info_entity: ''
- decimals: 2
display_abs: true
name: House
unit_of_display: W
invert_value: true
consumer: true
icon: mdi:home-assistant
entity: sensor.solax_house_load
preset: home
threshold: ''
icon_color:
bigger: ''
equal: ''
smaller: ''
- decimals: 2
display_abs: true
name: Solar
unit_of_display: W
icon: mdi:solar-power
producer: true
entity: sensor.solax_pv_power_total
preset: solar
threshold: ''
icon_color:
bigger: ''
equal: ''
smaller: ''
- decimals: 2
display_abs: true
name: battery
unit_of_display: W
consumer: true
icon: mdi:battery
producer: true
entity: sensor.solax_battery_power_charge
preset: battery
threshold: ''
icon_color:
bigger: ''
equal: ''
smaller: ''
secondary_info_entity: sensor.solax_battery_capacity
invert_value: true
secondary_info_attribute: ''
battery_percentage_entity: sensor.solax_battery_capacity
center:
type: card
content:
type: glance
entities:
- entity: sensor.octopus_agile_current_rate
name: Electric Cost
show_icon: false
animation: flash
Power Flow Card Plus
Another approach, uses the same visual style as Homeassistant energy dashboard
type: custom:power-flow-card-plus
entities:
battery:
entity: sensor.solax_battery_power_charge
state_of_charge: sensor.solax_battery_capacity
invert_state: true
grid:
entity:
consumption: sensor.solax_grid_import
production: sensor.solax_grid_export
name: EGD
solar:
entity: sensor.solax_pv_power_total
display_zero_state: true
home:
entity: sensor.solax_house_load
clickable_entities: true
display_zero_lines:
mode: show
transparency: 50
grey_color:
- 189
- 189
- 189
use_new_flow_rate_model: true
w_decimals: 0
kw_decimals: 1
min_flow_rate: 0.75
max_flow_rate: 6
max_expected_power: 2000
min_expected_power: 0.01
watt_threshold: 100
transparency_zero_lines: 0
